Loudspeakers come in a huge range of sizes and types for a myriad of applications. Their performance must meet the needs of these applications, and testing them is therefore essential and often difficult.
To measure sound levels accurately requires precision measurement microphones and supporting electronics, which have a known, stable sensitivity and flat frequency response over the frequency range of interest. Acoustic environments have interactions (e.g. walls, objects, temperature, and humidity) which, left uncontrolled, can dramatically and unpredictably impact the results of measurements taken by the engineer. Despite the challenges, when recommended procedures are followed using quality test equipment, it is possible to make good, repeatable loudspeaker measurements.
Loudspeaker Electroacoustic Measurements
In this application note, we provide an overview of the key electroacoustic measurements used to characterize the performance of loudspeaker drive units and loudspeaker systems. We focus on the most important objective measurements and refer to industry standards for guidance: • Frequency response • Sensitivity • Input voltage/power • Impedance & Thiele-Small parameters • Directivity • Distortion
更多资源
访问我们的技术资料库
Production Test with APx Audio Analyzers

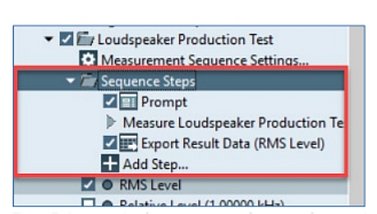

In this technote, we discuss features in the APx500 measurement software that support the creation of automated production test sequences, with a focus on electro-acoustic test.
立即下载
Loudspeaker Test with APx500 Flex

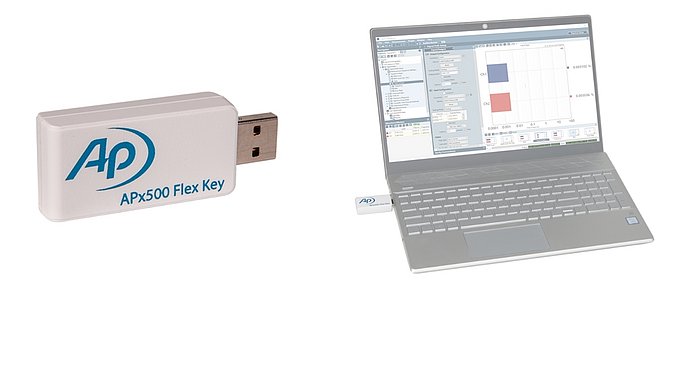

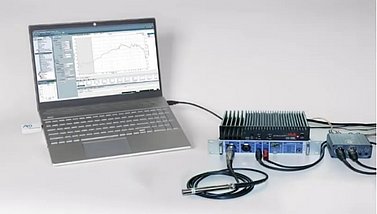

In this Quick Tip video, we briefly discuss how to perform loudspeaker testing with APx500 Flex and an off-the-shelf sound card or audio interface.
立即下载
Loudspeaker Rub and Buzz Measurements

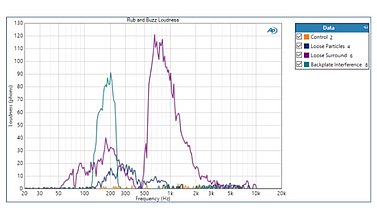

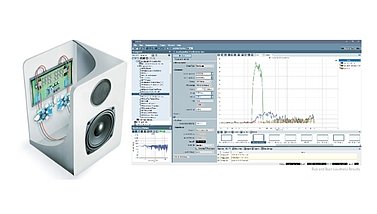

Detecting Rub & Buzz is critical before products reach customers, and in this application note, we introduce what it is and define four detection results used on production lines.
立即下载
Loudspeaker Acoustic Measurements in Ordinary Rooms
Learn how to achieve accurate loudspeaker frequency response measurements without an anechoic chamber using APx500's quasi-anechoic Acoustic Response measurement.
立即下载
Electro-Acoustic Options Datasheet
The Electro-Acoustic test suite software options for APx analyzers form a comprehensive solution and includes the broadest set of methodologies available for rub & buzz defect detection.
立即下载音频功放测试解决方案
浏览全部产品
Loudspeaker Test Methodologies
n this Audio Test Session with APx, we discuss and demonstrate a variety of test methodologies for evaluating loudspeaker performance. Measurements demonstrated include frequency, frequency response, total harmonic distortion (THD), rub and buzz, impulse response, impedance and Thiele-Small. Test of a Bluetooth speaker is also demonstrated.
功放测试常见问题
Accurate loudspeaker measurements rely on techniques that mitigate reflections. Common methods include:
Free-field / outdoor testing
Anechoic chamber test
Ground-plane technique
Time-selective (quasi-anechoic) techniques
Near-field measurements
Hybrid or combined techniques
The key international standard covering loudspeaker measurements is IEC 60268-5, Sound system equipment, Part 5: Loudspeakers. This standard applies to passive loudspeaker drive units and passive loudspeaker systems only; it does not apply to loudspeakers with built-in amplifiers.
Physical dimensions are extremely important in acoustics. The audible frequency range is generally considered to be 20 Hz to 20 kHz. The corresponding range of wavelengths of sound in air at room temperature is 17.2 m to 17.2 mm (56′ to 0.68″). So, at 20 Hz, a typical loudspeaker is tiny compared to the wavelength of sound, and it behaves like a point source, radiating uniformly in all directions. At 20 kHz, the opposite is true; a typical loudspeaker is large compared to the wavelength and its radiation pattern is radically different in all directions. Furthermore, the wavelength at 20 kHz is close to the diameter of a typical measurement microphone (12.7 mm or ½″), making measurements highly sensitive to small changes in microphone position.
