APx500 Flex音频分析仪由APx500测量软件和APx500 Flex-Key组成，允许您选择具有ASIO功能的音频接口，与AP的多功能和强大的APx音频测量软件一起使用。从您现在需要的测量选项开始，随着测试需求的发展，您可以自由添加其他测量。APx500 Flex为现成的音频接口硬件解决方案带来了AP创新，如一键测量、无代码自动化和复杂的报告。
特性
从实用的角度来看，APx音频分析仪使用一个通用的软件平台，使测试和结果更容易共享。测试的所有设置都保存在一个项目文件中，这使得在世界任何地方的研发和生产设施之间复制测试设置变得容易。
项目文件与APx500 Flex、B系列和传统APx仪器兼容，每个项目都是自包含的，因此永远不用担心依赖关系或链接中断。用户甚至可以在项目文件中嵌入波形文件和图像。
为了与客户、合同制造商或管理层共享测量结果，APx会自动生成丰富的图形报告，突出显示通过/失败限制，并可选择导出为PDF、HTML、Excel、CSV、RTF或MATLAB文件。
APx500 Flex延续了AP高度可配置测量解决方案的传统。根据您的测试要求选择测量选项，并能够购买单独的测量或超值的Flex Pack。
APx500柔性底座配置
16通道ASIO接口
文件分析
序列模式
输入信号监测器（包括FFT监测器）
水平和增益
THD+N
扬声器生产测试（包括Rub&Buzz）
步进频率扫描
通过/失败测量
信号采集测量
附加测量
选项选项卡或APx500 Flex音频分析仪数据表中列出了其他测量值，这些测量值既可以作为单独的选项，也可以作为APx500 FlexPack的一部分。
任何支持ASIO的音频接口都应该满足APx500 Flex的要求。然而，到目前为止，AP已经验证了下面列出的音频接口的兼容性，这些设备的配置模板包含在APx500软件（v5.0.2或更高版本）中。
还提供了使用这些音频接口之一设置Flex的指南（请参阅下载选项卡）。这些经过验证的兼容接口中的每一个都提供了高质量的模拟I/O（<90 dB THD+N，192 kHz SR）和具有一致延迟的稳定驱动器。请联系制造商或其授权经销商以获取更多信息。
Danville Signal dsp仪器spDAQ、Echo AIO-A2、Echo AIO-1A、Lynx Aurora（n）、Lynx-E22、RME Fireface UC、RME Fire ace 802
APx500 Flex与支持ASIO的音频接口兼容。选择符合您的预算和应用程序性能要求的接口产品。
APx500 Flex的软件许可由APx500 Flex-Key提供。只需移动APx500 Flex Key，即可将测量许可证从一台计算机移动到另一台计算机。
APx audio analyzers use a common software platform that makes tests and results easier to share. All test settings are saved in a single project file, for simple test setup replication between R&D and production facilities.
Project files are compatible with both B Series and legacy APx instruments and each project is self-contained, so there’s never any worry about dependencies or broken links.

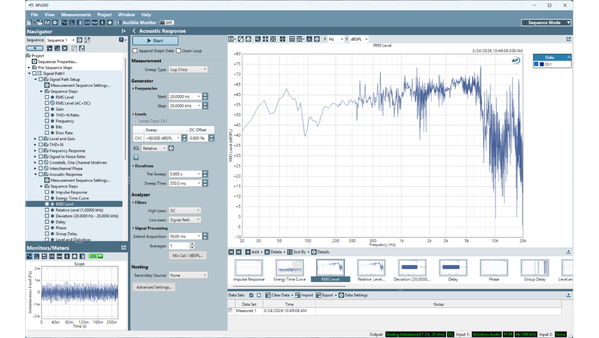

APx500 Audio Measurement Software
Scalable, Flexible Audio Software
The APx500 Measurement Software is the most advanced audio measurement interface available. Complex procedures that include user prompts, limits, and calls to external applications can be created directly in the GUI, saving time and money while ensuring painless updates over time and no development is required. AP offers a wide range of options tailored to specific applications, including: electro-acoustic testing, perceptual audio test, and speech intelligibility.
Benefits
• Built-in measurements
• Intuitive user interface
• Powerful automation features
• API integrations
• Subscription & perpetual license
规格参数与系统要求
Any ASIO-enabled audio interface should suffice with APx500 Flex. However, AP has thus far verified the compatibility of the audio interfaces listed below and configuration templates for these devices are included in APx500 software (v5.0.2 or later). Guides for setting up Flex with one of these audio interfaces are also available (see Downloads tab). Each of these verified compatible interfaces offer quality analog I/O (<90 dB THD+N, 192 kHz SR) and stable drivers with consistent delay. Please contact the manufacturers, or their authorized resellers, for more information.
Microsoft Windows 10 (64-bit) operating system.
USB 2.0 or USB 3.0. Two are required for optional switcher or DCX-127 use.
Intel i5 or better processor running at a clock speed of at least 2.5 GHz. AMD processors with similar specifications are also supported.
At least 8 GB RAM. 16 GB is highly recommended.
Internet connection or an USB Type A port (to access APx500 software for installation).
At least 1.5 GB of free hard disk space. An SSD for the operating system drive is recommended.
A color monitor and video card with at least SXGA (1280 X 1024) video graphics support. Video resolution of 1900 x 1080 or greater is recommended.
More detailed information is available on our AP Software and Windows Compatibility chart
System performance is sensitive to processor speed; faster processors will yield faster results.
APx500 is data intensive and it is recommended that other data-intensive applications not be run concurrently. This includes Audio Precision AP2700, APWIN or ATS.
